OUR PRODUCTS

The Futurail

Autonomy stack

A modular perception, localization, and control platform engineered for safety-critical rail autonomy — from driver assistance to fully unattended operation (GoA4).

01 / FUTURAILDetect

Obstacle Detection

Multi-modal sensor fusion combining LiDAR, radar, and HDR cameras for reliable obstacle recognition in all weather. Continuously monitors the clearance gauge and surroundings — including infrastructure intrusions, overhanging vegetation, and static encroachments — and classifies what it sees: humans, animals, road vehicles, rail vehicles, and vegetation.

Multi-modal sensor fusion combining LiDAR, Radar, and High-Dynamic-Range Cameras for reliable obstacle recognition in all weather. Our system categorizes hazards with unprecedented speed and accuracy.

Request data sheet!

KEY BENEFITS

Reduce collision risk and increase fleet availability (typically 3%)

Secondary track-monitoring output flags vegetation encroachment, ballast anomalies, and clearance deviations

KEY BENEFITS

Reduce collision risk and increase fleet availability (typically 3%)

Secondary track-monitoring output flags vegetation encroachment, ballast anomalies, and clearance deviations

TECHNICAL SPECIFICATIONS

Up to 400m detection range for speeds up to 160 km/h

< 500ms latency, 10Hz output frequency

All objects incl people, animals, vehicles, trees, rocks, …

All-weather: rain, fog, snow, dust, day and night

Up to SIL2 (EN 50716), EN 50126, CRA cyber resilience

TECHNICAL SPECIFICATIONS

Up to 400m detection range for speeds up to 160 km/h

< 500ms latency, 10Hz output frequency

All objects incl people, animals, vehicles, trees, rocks, …

All-weather: rain, fog, snow, dust, day and night

Up to SIL2 (EN 50716), EN 50126, CRA cyber resilience

Request data sheet!

02 / FUTURAILSignal

01 / FUTURAILDetect

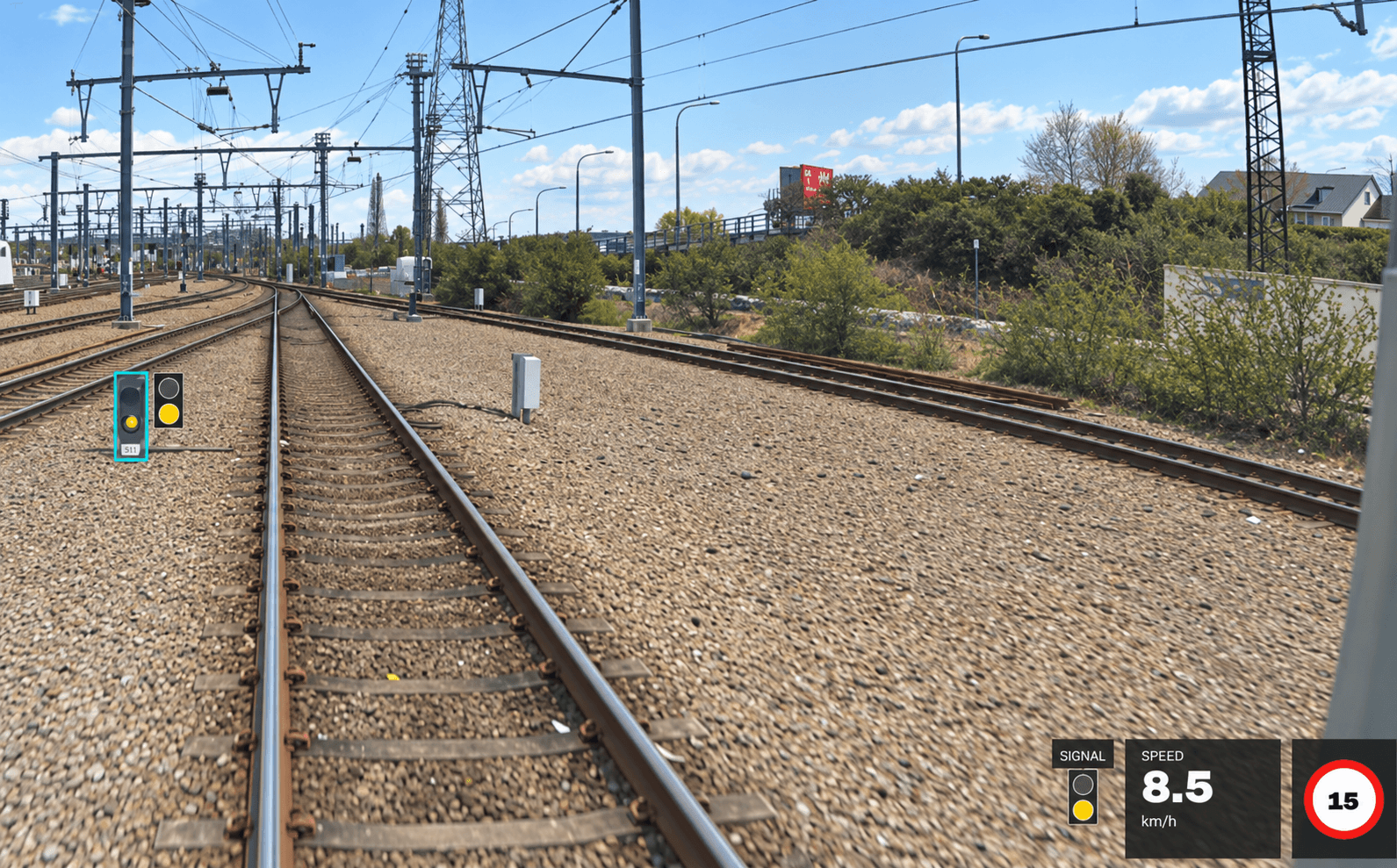

Signal Recognition

Computer vision system that detects, classifies, and interprets trackside signal aspects and speed signage in real time via camera/LiDAR fusion. Detected signals are cross-referenced against the digital track and signal database to validate position, type, and track assignment — supporting Signal-Passed-At-Danger (SPAD) prevention as a core safety function.

KEY BENEFITS

Reduction of Signal Passed at Danger (SPAD) events

Additional safety layer for legacy and class B signalling systems

TECHNICAL SPECIFICATIONS

99% signal classification accuracy at 100m with detection range up to 200m

Reads both main and dwarf signal aspects, plus fixed and temporary speed restriction signage

99% signal classification accuracy at 100m with detection range up to 200m

Reads both main and dwarf signal aspects, plus fixed and temporary speed restriction signage

03 / FUTURAILLocalize

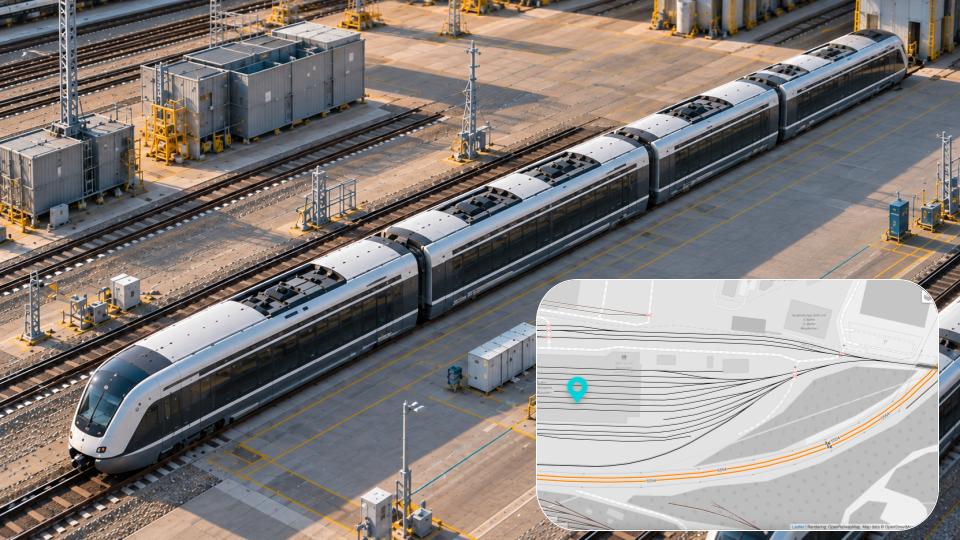

Precise Localization

Rail-specific localization and mapping that matches live LiDAR scans against a digital rail map for precise, robust positioning — including inside tunnels, depots, and other GNSS-denied environments. The map is built using the same sensors used in operation, and updates itself automatically as it detects changes on the network.

Request data sheet!

KEY BENEFITS

Precision stopping — e.g. aligning over a battery charger or with an elevated platform for wheelchair access

Precise gauge placement for Obstacle Detection

Additional odometry and localisation source for signalling and train protection

TECHNICAL SPECIFICATIONS

±10cm and 0.1° localization accuracy

Fully supported in GNSS-denied environments — tunnels, forests, covered depots

10Hz position update rate

Integrates with GNSS receivers, IMUs, wheel odometry, and existing onboard train networks for redundancy

All-weather: rain, fog, snow, dust, day and night

KEY BENEFITS

Precision stopping — e.g. aligning over a battery charger or with an elevated platform for wheelchair access

Precise gauge placement for Obstacle Detection

Additional odometry and localisation source for signalling and train protection

TECHNICAL SPECIFICATIONS

±10cm and 0.1° localization accuracy

Fully supported in GNSS-denied environments — tunnels, forests, covered depots

10Hz position update rate

Integrates with GNSS receivers, IMUs, wheel odometry, and existing onboard train networks for redundancy

All-weather: rain, fog, snow, dust, day and night

Request data sheet!

04 / FUTURAILAssist

Driver Assistance

An add-on safety feature that increases driver awareness and reduces reliance on attention alone, while requiring no change to existing operating rules or train homologation. Delivers real-time obstacle detection, signal recognition, and cm-level positioning through an in-cab dashboard with visual and audible warnings — optionally shared with the infrastructure manager to support maintenance planning. The same sensor and compute foundation used across Futurail's stack means a driver assistance deployment can be upgraded to higher automation grades (GoA2/3/4) later without a hardware change.

KEY BENEFITS

Safety in the highest-risk zones — construction zones, yards, and depots

Improved fleet availability — earlier warnings prevent the collisions and low-speed derailments that typically sideline 3–5% of a fleet

Lowest entry point for automation — no change to operating rules or homologation

Improved fleet availability — earlier warnings prevent the collisions and low-speed derailments that typically sideline 3–5% of a fleet

Lowest entry point for automation — no change to operating rules or homologation

TECHNICAL SPECIFICATIONS

Runs on the FUTURAIL Hardware Kit; third-party compute platforms supported subject to interface qualification

In-cab dashboard with visual and audible warnings

Runs on the FUTURAIL Hardware Kit; third-party compute platforms supported subject to interface qualification

In-cab dashboard with visual and audible warnings

05 / FUTURAILPlatform

The Sensor & Compute Platform

A multi-sensor, multi-computer system for real-time perception and localization, combining short- and long-range sensors, redundant high-performance edge computers, and a dedicated safety computer in a railway-grade package — serving as both Futurail's native hardware base and an open platform for customers and third-party software. Supports retrofit and first-mount installations across train types and automation levels, scalable up to SIL2.

FUTURAILPlatform

The Sensor & Compute Platform

Request data sheet!

KEY BENEFITS

Collisions and low-speed derailments typically sideline 3 to 5% of a fleet, earlier warnings keep more trains in service

In-cab display showing the forward camera view, distance to the next detected object, current speed and the active signal aspect or speed restriction

Front and rear camera views recorded and retained for post-incident investigation.

Collisions and low-speed derailments typically sideline 3 to 5% of a fleet, earlier warnings keep more trains in service

In-cab display showing the forward camera view, distance to the next detected object, current speed and the active signal aspect or speed restriction

Front and rear camera views recorded and retained for post-incident investigation.

TECHNICAL SPECIFICATIONS

12” DMI display

Railway grade (EN50155)

Includes Collision Warning, SPAD warning, blind spot view, camera recording

12” DMI display

Railway grade (EN50155)

Includes Collision Warning, SPAD warning, blind spot view, camera recording

HARDWARE COMPONENTS

SENSORS

Cameras — 30° & 120° FoV, 4K, 30fps, 120dB HDR

Lidars — 180° & 120° FoV, up to 210m, 10Hz

Radar — 120° FoV, up to 300m, 20Hz

GNSS — RTK support

IMU — 9-axis, high precision

DMI — 12" touch display

Cameras — 30° & 120° FoV, 4K, 30fps, 120dB HDR

Lidars — 180° & 120° FoV, up to 210m, 10Hz

Radar — 120° FoV, up to 300m, 20Hz

GNSS — RTK support

IMU — 9-axis, high precision

DMI — 12" touch display

COMPUTERS

High-performance compute unit — 1x X86 + 1x Orin

Safety compute unit (SIL2)

Connectivity — Cellular 5G/4G and WiFi

High-performance compute unit — 1x X86 + 1x Orin

Safety compute unit (SIL2)

Connectivity — Cellular 5G/4G and WiFi

AUTONOMOUS OPERATIONS

FuturailDriver combines Detect, Localize, and Drive into a single closed-loop autonomy stack: obstacle and clearance data, signal and speed data, and precise position are fused into one continuously validated operating picture that the train acts on directly. Deployment is two-stage — hardware kit integration and software customization first, then the software stack itself, licensed per train per year.

Learn more

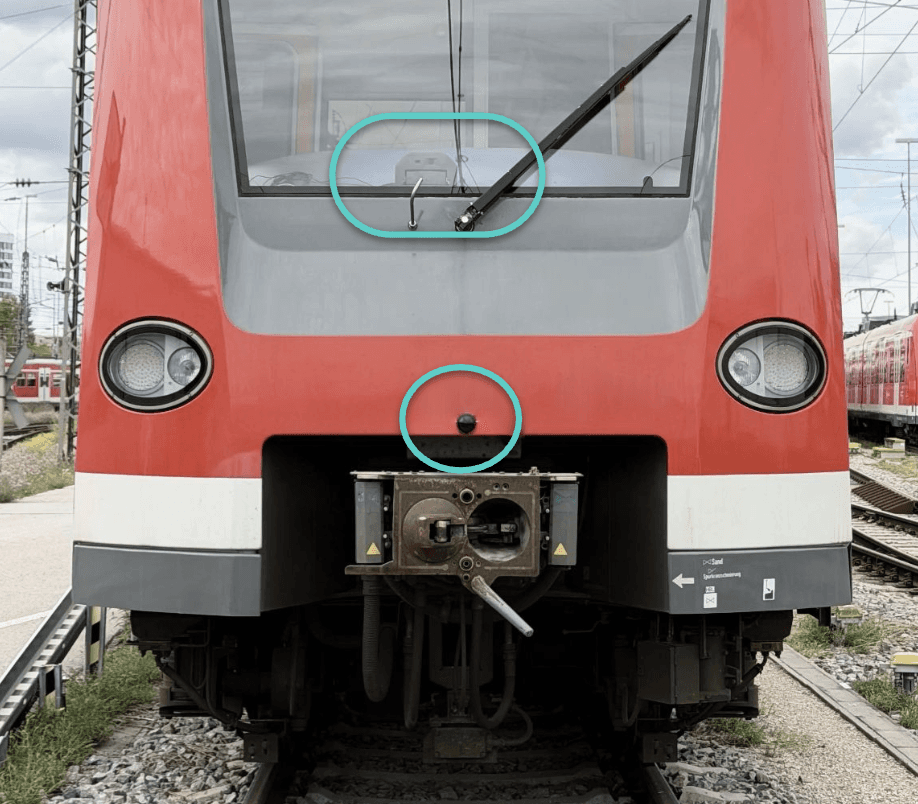

First-Mount Integration with OEMs

For newly built rolling stock, we provide seamless first-mount integration with Original Equipment Manufacturers (OEMs). This ensures that our technology is fully incorporated into the design and manufacturing process, delivering optimal performance from day one.

Retrofit Deployment for Existing Fleets

For train operators and infrastructure managers looking to enhance their current fleet, we offer retrofit deployment solutions. Our team works closely with you to upgrade and integrate our cutting-edge technology into your existing trains, improving efficiency and performance without the need for a complete overhaul.

SAFETY

AS THE BASE

SAFETY AS THE BASE

Safety is the foundation of everything we do.

We're targeting SIL2 approval for our obstacle detection system by 2028 — engineered against EN 50126, EN 50716, with hardware compliant to EN 50155 and EN 61373.
